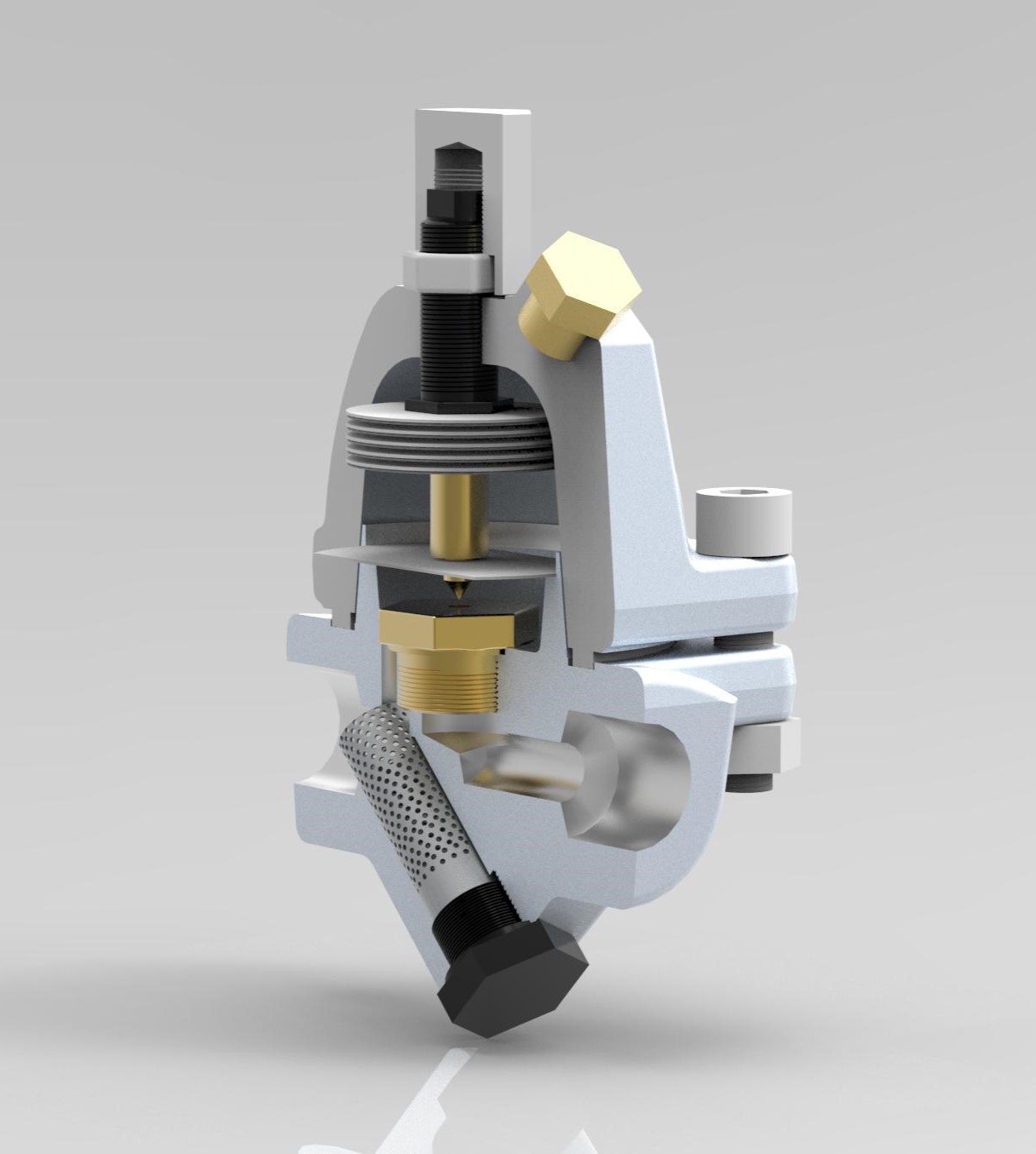

Bimetallic Bitermostatic Steam Trap
General Description
Bimetallic bitermostatic pressure-balanced steam traps with independent seat and valve, featuring an external adjustment device for on-the-go adjustment of discharge temperature and flow rate.
Descripcción detallada
General Description
Bimetallic bitermostatic pressure-balanced steam traps with independent seat and valve, featuring an external adjustment device for on-the-go adjustment of discharge temperature and flow rate.
No hay videos disponibles para este producto
Reseñas de los usuarios acerca de este producto
| UTG25/Ti | TG25/Ti | PG45/Ti | UPG45Ti | PG55/Ti | UPG55Ti | |
|---|---|---|---|---|---|---|
| Max. operating pressure | 25 bar | 25 bar | 45 bar | 55 bar | 55 bar | 55 bar |
| Max. differential pressure | 25 bar | 25 bar | 45 bar | 55 bar | 55 bar | 55 bar |
| Max. Temperature | 400 °C | 400 °C | 400 °C | 425 °C | 425 °C | 425 °C |
Butt Weld
Socket Weld
Flange ANSI 150/300/600#
Universal Connection
Other connections upon request
| Body | Carbon steel A105 |
| Seat | Stainless steel AISI 420 |
| Valve | Stainless Steel AISI 440B |
| Bimetals | Alloy. 38/7NiCr & 19/7NiCr |
| Strainer | Stainless steel A182 F304 |
Optional : Seat and shutter coated by Titanium Nitride (TiN).
